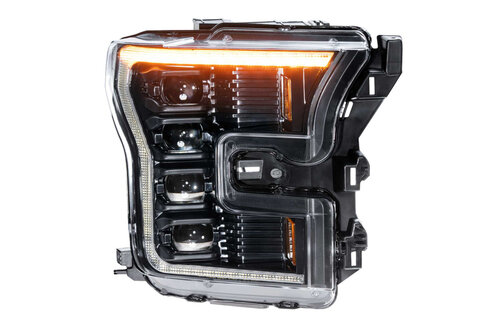

FORD RAPTOR (16-20): XB LED HEADLIGHTS

$1,711.90

-

Categories: Prebuilt Headlights, US/Domestic Pre-Built Headlights
All Categories
  • Airbag Cover
  • Bav Swag
  • Build Mat'l/Tools/Acc
  • Carbon Fiber Products
  • Clear/Etched Lenses
  • Clearance/Sales
  • Color Shifting Products
  • Corner/Side LEDs
  • D Series HID Bulbs
  • Demon Eyes
  • E Series Steering Wheels
  • Euro Angel Eyes
  • Euro Interior Products
  • Euro Pre-Built Headlights
  • Euro Products
  • Euro Tail Lights
  • F Series Steering Wheels
  • Foglights
  • H Series HID Bulbs
  • Harness/Error Fix
  • Harnesses/Error Fix
  • Headlight Lenses
  • Headlights/BMW OEM
  • Headlights/Domestic
  • HID Systems/Parts/Bulbs
  • JDM Angel Eyes/DRLs
  • JDM Build Materials/Tools
  • JDM Pre-Built Headlights
  • JDM Products
  • LED Brows and Strips
  • LED Bulbs Lowbeam
  • LED Corner/Side Markers
  • LED Lowbeam/Foglight Bulb
  • LED Strips
  • Misc HID Parts
  • Mod Parts & Misc Parts
  • Performance Upgrades
  • Prebuilt Headlights
  • Projector Shrouds
  • Rohana Wheels
  • Sales
  • Signature Wheels
  • Steering Wheels
  • Uncategorized
  • US/Domestic Angel Eyes/Daytime Running Lights (DRL'S)
  • US/Domestic Build Materials/Tools
  • US/Domestic Pre-Built Headlights
  • US/Domestic Products
  • US/Domestic Tail Lights
  • Wheels
  • Description
  • Additional information
  • Reviews (0)

PRODUCT DETAILS

NO SUBSTITUTES:
If you don’t have LED powered headlights on your Ford Raptor, then you’re just behind the times! Thankfully our XB LED headlights look great; Are well-built; Have a virtually infinite life span; An unbeatable warranty; and out-perform the alternatives. Easily making them the best Raptor LED headlights on the market today!

MORE LIGHT OUTPUT:
The original Raptor XB heads used two projectors on top for the low beam, and two on the bottom as a dedicated high beam. This updated setup utilizes all four projectors for the low beam and has a dual Bi-LED setup for the high beam. The results is 200% more light output and a better distribution of light for improved visibility in the distance and off to the sides of the road.

START-UP SEQUENCE:
And if the optical upgrades weren’t enough, the start up sequence has been added too. When the Daytime Running light kicks on, the projectors illuminate in a two-stage sequence before turning back off. A video is worth a thousand words here… so make sure to watch the one embedded in the listing to see that in action! While it does absolutely nothing for performance, you can’t deny the cool-factor!

PERFORMANCE:
These Morimoto’s XB LED headlights produce a well defined beam pattern with a great amount of width, intensity, and a proper distribution of light. They even out-performed the expensive OEM LED headlights!

OEM+
Make no mistake, these will produce a much different [better] result than slapping some LED replacement bulbs into your stock housings. Their quad-projector optics meet & exceed all SAE, DOT, and FMVSS108 regulations when aimed properly…and that’s easy to do with their integrated vertical/lateral adjusters. PLEASE NOTE: On the Amber/Raptor edition, the LED DRL is extremely bright and DOES NOT DIM (just like the OE LED headlights)

PLUG-N-PLAY:
Wiring is easy too! The XB Raptor LED headlights are designed to work without any modifications. They will plug into the factory connectors for the stock headlights and each assembly includes all necessary connectors, rubber seals, and pigtails for a plug n play install. No error codes, no flickering, hyper-flashing, or radio interference. They can easily be removed, and will not void your factory warranty.

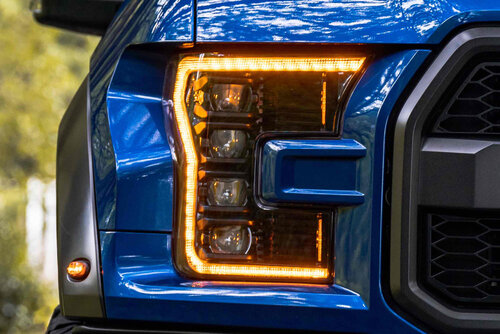

SEQUENTIAL LED DRL:
Game Changer! Their LED daytime running light is powered by Osram LEDs and is insanely bright, easily visible during the day. At the top of the housings, a row of LED’s provides the turn signal function. You can set them up to run as sequential or solid signals according to your preference.

WELL-BUILT:
Their UV-coated polycarbonate lens will resist the test of time, ensuring your Raptor headlights will look good as new for many years to come. The PPS plastic housing is light-weight and much stronger than comparable alternatives. The die-cast aluminum heat-sinks inside the housings provide more than an adequate amount of cooling for the OEM grade Osram LED chips that produce the light. These complete headlights may be new to the market, but Morimoto’s XB LED fog lights have proven themselves perfect after 5+ years out now, which is confidence inspiring.

LOOKS:
The piano black trim and smoked gray reflectors keep the color scheme neutral, and the quad kuria-optic projectors are as modern as it gets.

CUSTOMIZABLE:
Thinking about paint-matching some OEM LED headlights from Ford? OEM units are nearly impossible to open up and then reliably re-seal. With Morimoto’s Raptor LED headlights, that job is painless! Since they’re sealed with Butyl Rubber, they are much easier to open, customize/paint and then reseal!

PRODUCT SPECS

WHAT’S INCLUDED:

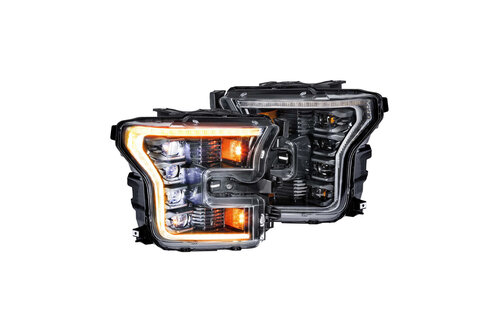

  • HEADLIGHTS: Raptor XB LED (Set – L/R)

  • WIRING: Plug and Play Harness

  • LED DRIVERS: XB LED Driver Modules

  • WARRANTY: 5 Years

COMPATIBILITY:

  • F150: 2015-2017

  • RAPTOR: 2016-2020

  • REPLACES: FL3Z-13008B, FL3Z-13008A (Halogen)

  • REPLACES: HL3Z-13008-A, HL3Z-13008-A (LED)

  • WIRING: Plug n Play

  • MEETS: DOT, SAE, FMVSS108

  • NOTE: Euro Version shown. Actual product may ship with Amber Sidemarker

TECH SPECS:

  • TRAFFIC PATTERN: LHD ONLY

  • INPUT: Proprietary Ford Multi-pin

  • WEATHER RATING: IP67 Waterproof

  • LENS MATERIAL: High Impact Polycarb (UV-Resistant)

  • LIGHT SOURCE: Osram Ostar Headlamp LED

  • LED OPTICS: Kuria Quad Optics

  • INTENSITY: 2,600lm (raw; each)

  • COLOR: 5500K (Pure White)

Related

Weight 29 lbs
Dimensions 30 × 30 × 30 in
